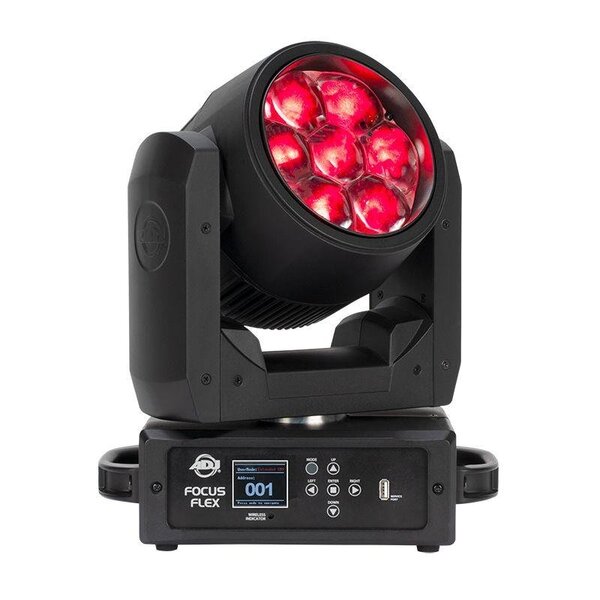

ADJ Focus Flex Moving Head

Name: ADJ Focus Flex Moving Head
SKU: FOCUS-FLEX
Price: 2369.00 CAD
Availability: InStock

$2,369.00

The Focus Flex offers lighting designers the creative flexibility of generating vibrant washes, punchy beams, and eye-catching pixel effects from one compact and quick automated luminaire. Powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently, it offers a motorized zoom function providing the versatility of a variable field angle of between 6 and 57-degrees. With a variety of DMX mode options appropriate to different applications, it offers virtual CMY color mixing and virtual foreground and background color wheel control as well as a choice of seven different DMX modes.

Add to Wishlist

Continue Shopping SKU: FOCUS-FLEX Categories: ADJ, DJ & Club Lighting, LED Wall Wash, Moving Heads, Pro Lighting, Stage Lighting, Wireless DMX

Description

Light Source:

• 7 x 40-Watt RGBW LEDs (50,000 hr.)

• CRI: 78.7

• 15,140 lux / 4 beam @ 16′ (5m)

• 378 lux / 35° beam @ 16′ (5m)

• Lumens: 3240 (Zoomed Out, Full On)

Features:

• Moving Head Pixel Wash with Pixel Effects

• Electronic Strobe / Dimmer

• Pan/Tilt: 540/630 x 265

• Motorized Zoom

• Beam Angle: 4° ~ 35°

• Field Angle: 6°~57°

• Color Calibrated Pixels so units match from batch to batch

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Selectable LED Refresh Rates (900 Hz~25K Hz)

• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)

• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• Fan Cooled

• Antenna for WiFLY EXR Wireless DMX

Colors:

• Virtual CMY DMX Control Modes

• Virtual Foreground and Background Color Wheel Control

• Built-In Color Macros

• 2700k ~ 10,000 Liner White Color Control

• Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K

Control:

• 7 DMX Modes – 16/25/34/42/50/25 (CMY)/28 (CMY) Channels

• Color LCD display with 6-button function menu

• Control Mode: DMX512 or internal programs

• Built-In Effect Pixel Programs with Speed and Fade Control

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Pan/Tilt:

• Pan: 540/630 degrees

• Tilt: 265 degrees

Connections:

• DMX Connections: 5-pin XLR In/Out

• Power Connections: Indoor Locking Power In/Out

Electrical:

• Multi-voltage operation: 90-240V, 47/63Hz

• Max power consumption: 340W @120v

Dimensions & Weight:

• Dimensions (LxWxH): 7.0″L x 11.5″W x 12.9″ H (179x292x329mm)

• Weight: 15.5lbs (7kg)

What’s Included:

• Omega Brackets

• 1.83M locking power cable

Optional Road Cases:

• DRC MH: 2 Focus Flex fit in the DRC MH Road Case

• QRC MH: 4 Focus Flex fit in the QRC MH Road Case

Approvals / Rating:

ETL Approved / CE Certified

IP20

Specifications subject to change without notice
