Description

SOURCE:

• 7 × 8W RGBW 4-in-1 Center LED’s
• 32 × RGB 3-in-1 Ring LED’s
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA:

• Pure Color Output
• Excellent Color Mixing
• Smooth Wash Output

COLOR:

• RGBW 4-in-1 Center LEDs
• RGB 3-in-1 Outer Ring LEDs
• White Balance Setting

EFFECTS:

• Animated RGB Ring Effects
• 0–100% Linear Electronic Dimming
• High-Speed Synchronous Strobe

CONTROL / CONNECTIONS:

• 4 DMX Channel Modes (3 / 6 / 13 / 38 Channels)
• DMX512
• Primary-Secondary Mode
• Auto Run Mode
• Sound Active Mode

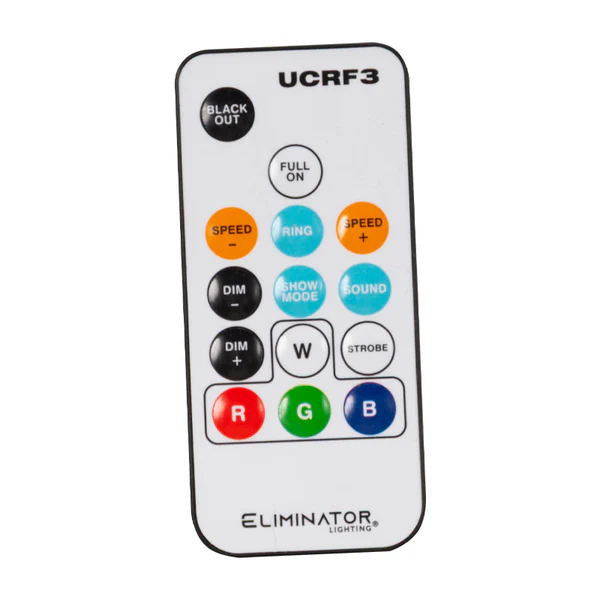

• Wireless Remote Control

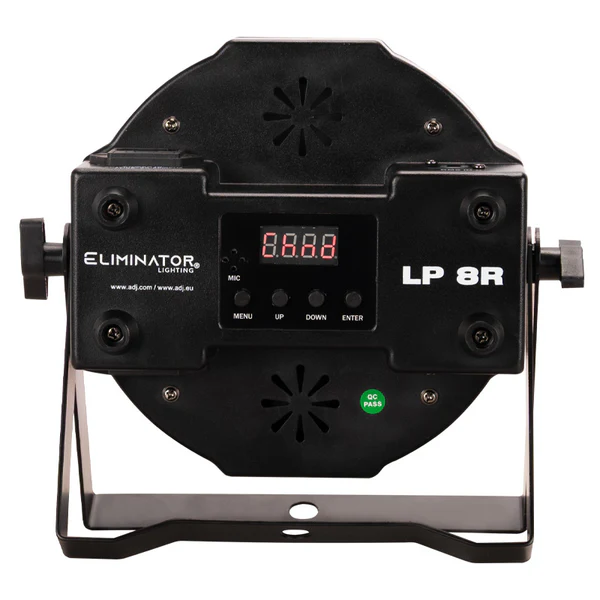

• 4-digit, 7-segment LED Display

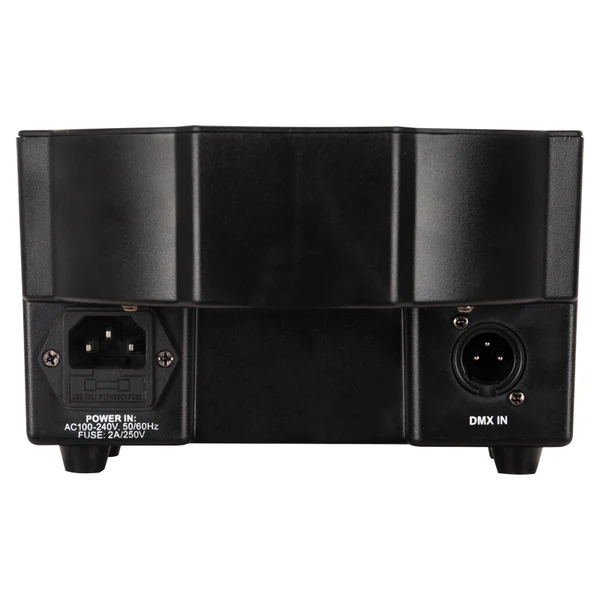

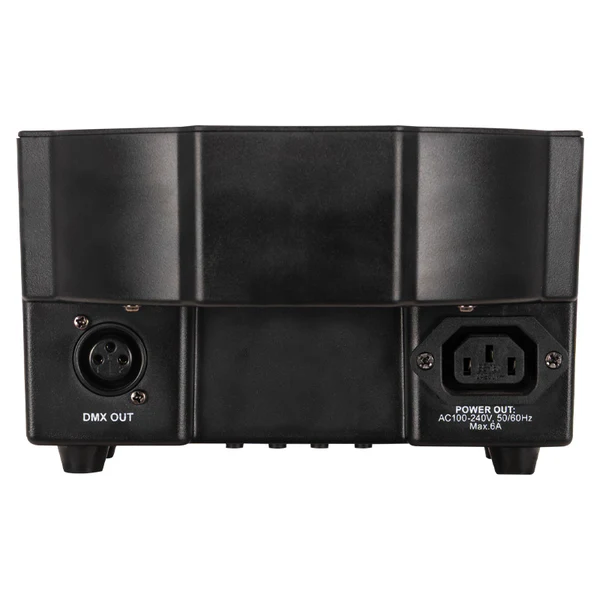

• 3-pin XLR DMX In/Out
• IEC Power In/Out

SIZE / WEIGHT:

• Length: 7.09″ (180mm)
• Width: 5.12″ (130mm)
• Height: 8.27″ (210mm)
• Weight: 1.76 lbs. (0.8kg)

ELECTRICAL / THERMAL:

• AC 100-240V, 50/60Hz
• Max Power Consumption: 60W
• Temperature Control Protection

APPROVALS / RATINGS:

• IP20

Specifications are subject to change without notice.
