Description
Light Source:
• 150-Watt high power cool white LED
• 50,000 hours average life expectancy
Features:
• Motorized Focus
• Motorized zoom (9° – 14°)
• 0-100% smooth dimming
• Variable speed strobe effect (1Hz – 20Hz)
• Fast, precise, pan & tilt movements

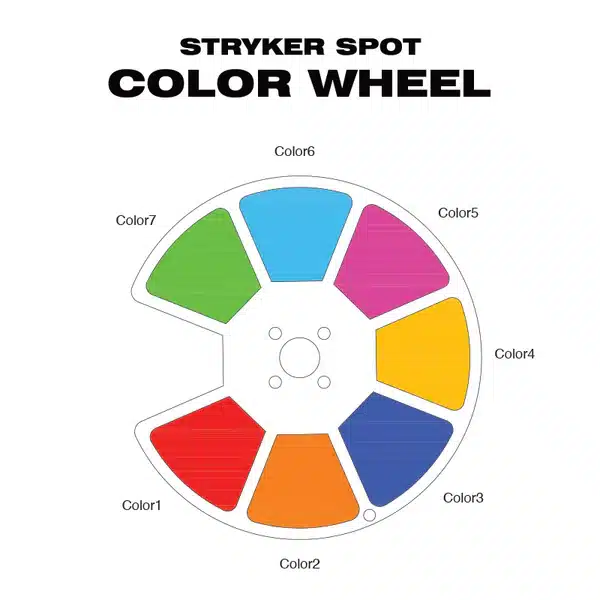

Color Wheel:
• 7 dichroic colors + open white

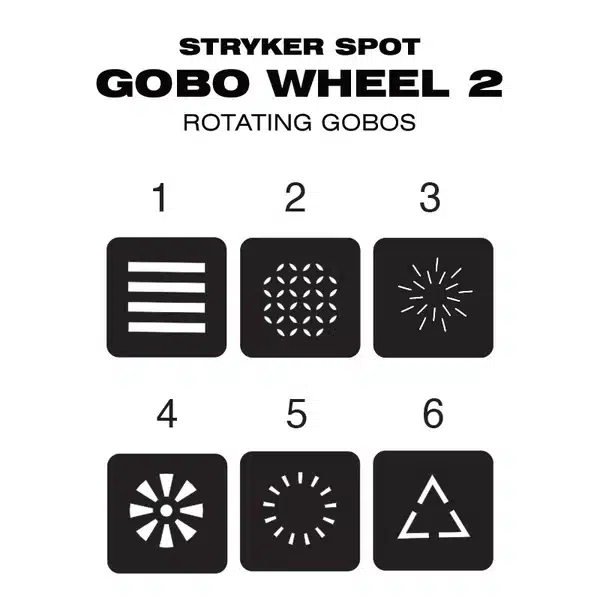

GOBO Wheels:

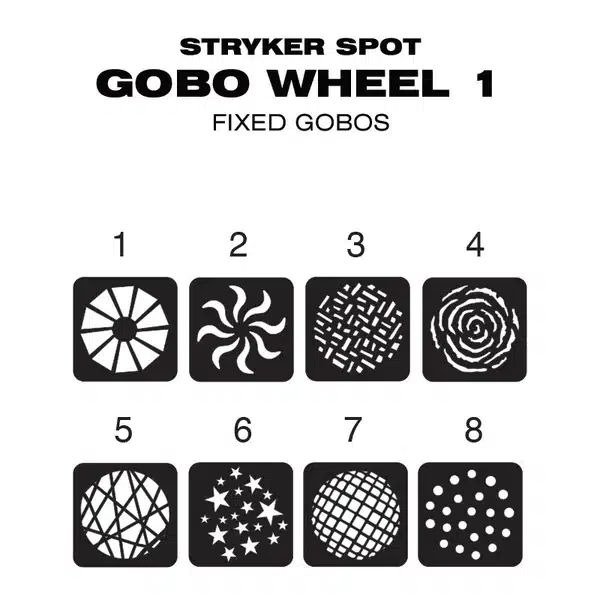

• Wheel 1: 8 static GOBOs + Open
• Wheel 2: 6 replaceable rotating GOBOs + Open
• Gobo Outer Diameter : 21.8mm
• Gobo Inner Diameter (viewable): 13.7mm
Prisms:
• Prism 1: rotatable (bi-directional) 6-facet circular
• Prism 2: rotatable (bi-directional) 5-facet linear
Control:
• Operating modes: DMX512 / Primary-Secondary / Auto Run / Sound Active
• DMX channel modes: 16 / 18
• RDM (Remote Device Management)
• LCD Menu Display

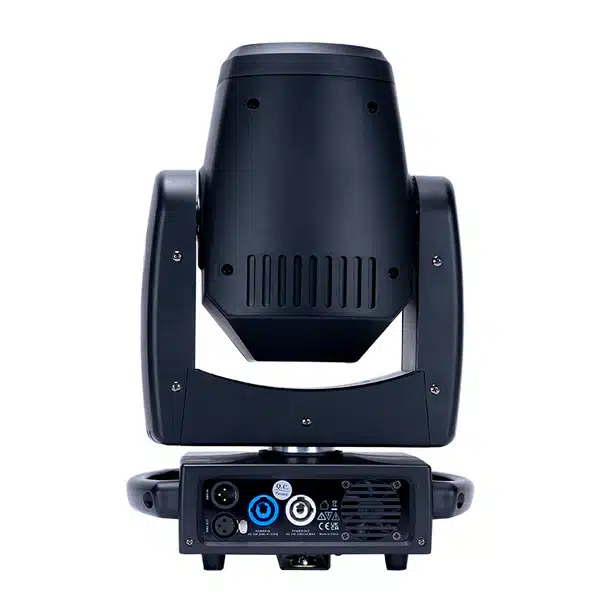

Connections:
• Data in/out: 3-pin DMX
• Locking Input & Output connections to daisy chain power
Pan/Tilt:
• Pan: 540°
• Tilt: 210°
• 16-bit Fine Pan
• 16-bit Fine Tilt
Electrical:
• Multi-voltage operation: 100-240V, 50/60HZ
• Maximum power draw: 180-Watts
Dimensions & Weight:
• Unit Dimensions (LxWxH): 16.4” x 11.5” x 7” / 417mm x 292mm x 180mm
• Weight: 19 lbs. / 8.5kg
Approvals / IP Rating:
• CE
• cETLus (Control # 5027824)
• IP20
• FCC
Specifications are subject to change without notice.
