Description

Specifications:

Light Source:

• 300W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus

• 2 Frost Filter to create wash effects

• Motorized Zoom: 9~28-degrees

• 2 Prism FX: Rotating 6-facet Linear & rotating 6-facet Circular

• Motorized Iris

• Motorized Shutter

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

Color Wheels:

• Color Wheel 1: 7 dichroic colors + white

• Color Wheel 1: 7 dichroic colors (includes CTO, CTB and UV filters)

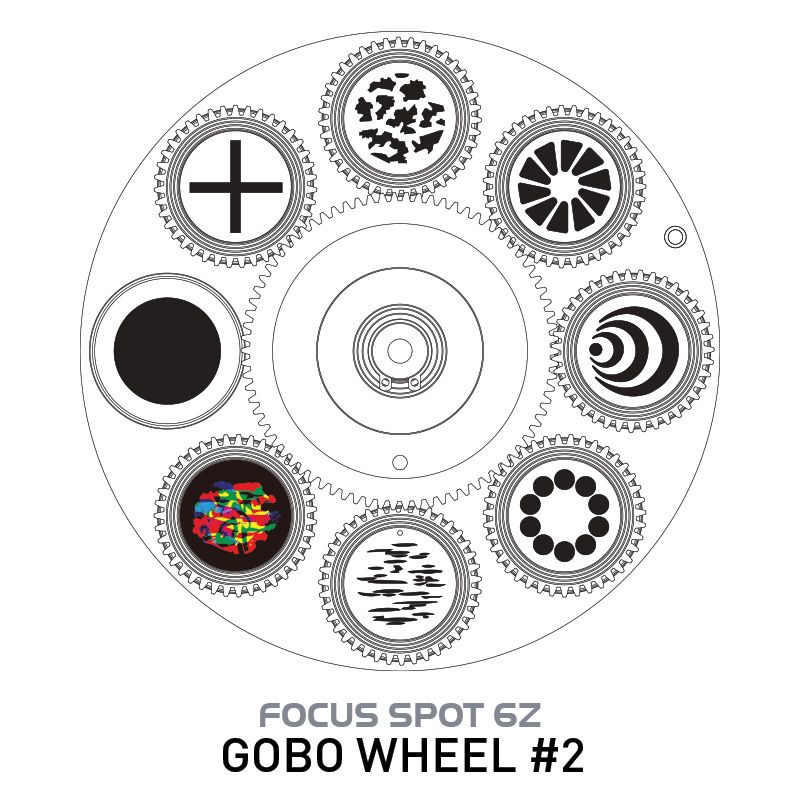

GOBO Wheels:

• GOBO Wheel 1: 7 GOBOS + open

• GOBO Wheel 2: 7 GOBOS + open

• GOBO Shake Effect

Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Linear

• Prism Wheel 2: Rotatable 6-facet Circular

• Each Prism is indexable

Frost Filters:

• Frost 1: Heavy frost for wash effect

• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX

Control:

• 2 DMX Channel Modes: 22/25 Channels

• Color LCD display with 6-button function menu

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 630 degrees

• Tilt: 270 degrees

• 16-bit fine Pan & Tilt

Connections:

• DMX Connections: 3-pin & 5-pin XLR In/Out

• Power Connections: PowerLock In/Out to daisy chain power

• RJ45 In/Out connections for ArtNet and KlingNet

Electrical:

• Multi-voltage operation: AC 90-240V, 50/60Hz

• Max power consumption: 380W

Dimensions & Weight:

• Dimensions (LxWxH): 14.18” x 9.21” x 22.04” / 360x234x560mm

• Weight: 42.4 lbs. / 19.4 kg.
