• Ultra bright, 40-inch indoor Linear Bar with 12 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs
• Smooth RGBAW + UV color mixing
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• 5 DMX Channel Modes: 6/7/8/12/36 channels
• 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color and DMX-512 Mode
• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free operation (No flickering on camera)
• 63 built-in Color Macros
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• 2×8 Character LCD Display
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground
• Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Light output: 1680 LUX @ 2M; 478 LUX @4 Meters (40-degree beam)
• Power Draw: 90W

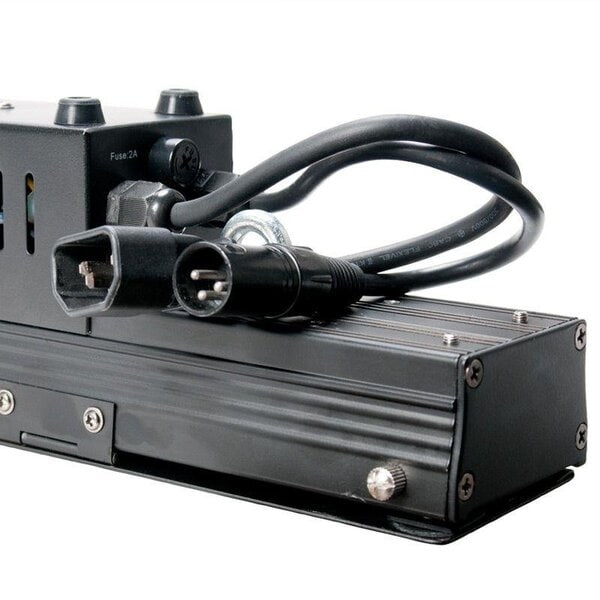

• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 7 Ultra Hex Bar 12 fixtures)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meter (IEC)
• Dimensions (LxWxH): 40.25” x 2.75” x 4.75”/ 1020 x 70 x 122mm
• Weight: 11 lbs./ 4.74kg.

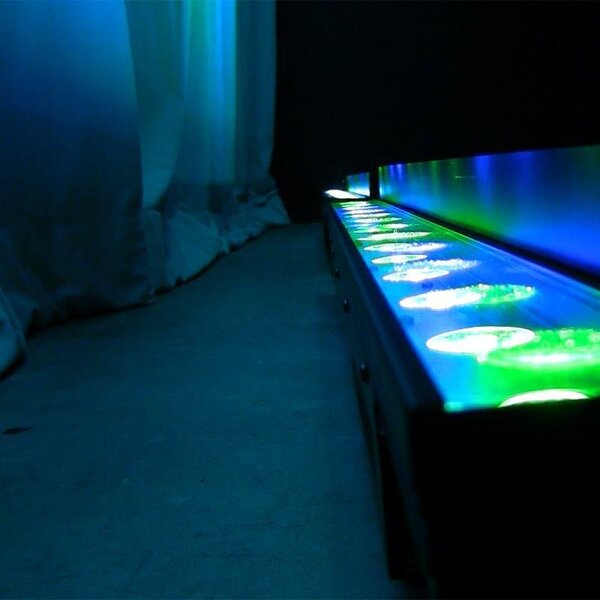

The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt , 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.
Ultra HEX Bar 12 professional features include: 5 DMX modes (6, 7, 8, 12, & 36 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC In/Out power connectors.
The Ultra HEX Bar 12 is compatible with the ADJ RFC, easy-to-use, wireless infrared remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
ADJ Lighting Warranty:
ADJ Lighting & ADJ Branded Products:
1- Year Limited Warranty
ADJ Laser: 180 Day Limited Warranty
ADJ Led Products: 2-Year Limited Warranty
ADJ Batteries: 180 Day Limited Warranty
DMX Controllers: 2- Year Limited Warranty
www.soundlitesales.com is a Canadian authorized ADJ Dealer.
