Description
SOURCE

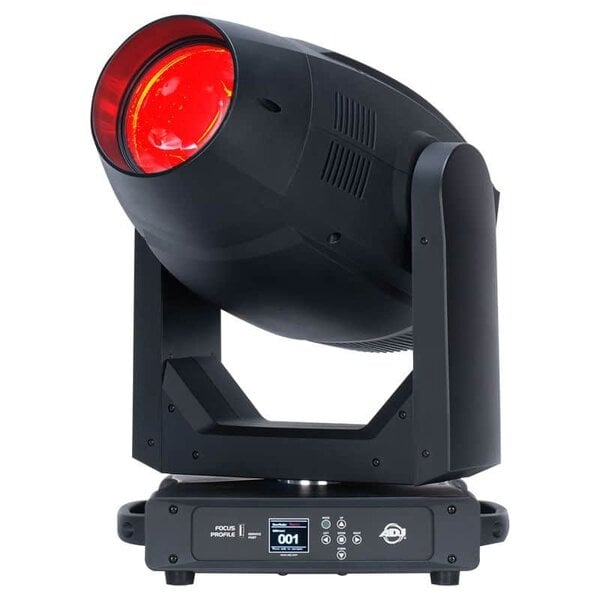

400W LED Engine
20,000 Hour Average LED Life
PHOTOMETRIC DATA
20,000 Total Lumens
6,700K, >70CRI (without CRI Filter)
6,200K >87CRI (with CRI Filter)
44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam)
1,767 LUX 164 FC @16.4’ (5m) (45° Beam)
EFFECTS
4 Rotating Framing Shutters, +/-60°, plus shape rotation
3-Facet Circular & 4-Facet Linear Rotating Prisms
Replaceable Medium Frost Filter
Animation Wheel
Motorized Zoom (7~45-degrees)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)
COLOR
Full CMY color mixing
Variable CTO (2700K to 6700K)
Colors Wheel with 6 dichroic colors
GOBOS
(2) Gobo Wheels
#1 – (7) Interchangeable Rotating-Indexing Gobos
#2 – (8) Static-Stamped Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (36 / 40 / 51)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3 & 5 pin XLR DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking In/Out power connections
With Wired Digital Communication Network
PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees
Pan & Tilt Locks
SIZE / WEIGHT
Length: 15.7″ (400mm)
Width: 10.2″ (259mm)
Vertical Height: 26.1” (664mm)
Weight: 61.2 lbs. (27.75kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
Max Power Consumption: 560W
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: 136°F (58°C)
TECHNICAL DATA
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60
APPROVALS / RATINGS
CE | ETL
IP20
INCLUDED ACCESSORIES
(1) Power cable
(2) Omega brackets
(1) Heavy frost filter (JMJ03)
Specifications and documentation subject to change without notice.
