Description
Light Source:

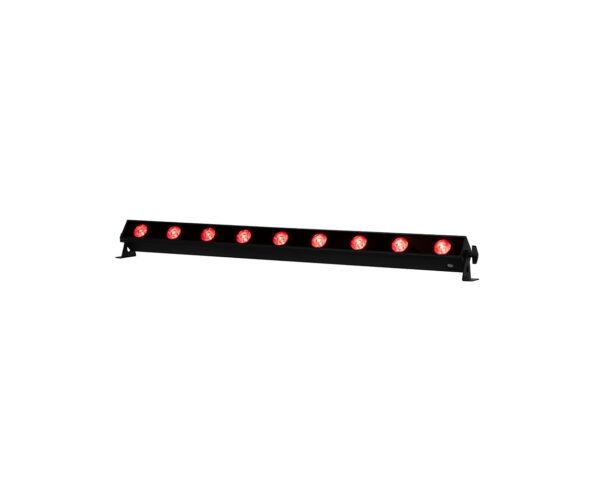

• 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 17° beam angle
• CRI >90
• Pixel Pitch: 113mm
Features:
• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV color mixing
• Horizontal Magnetic Alignment feature (Built-In)
• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM Compatible
Control:
• Linear Color Temperature Control (2,300K to 9,900K)
• OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
• 3 Groups x3 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
• LED Refresh Rate: 1.9KHz
• 64 built-in Color Macros
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
• Built-In Microphone for sound trigger
• LED pulse and strobe effect
• Electronic Dimming: 0-100
Connections:
• Linkable: DMX via 5-pin XLR cable
• Locking power In/Out to daisy chain power
Electrical:
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 54W
• Daisy-chain power link (Up to 22 UBL9H’s can be linked @120V and up to 40 UBL9H’s can be linked @230V)
Dimensions / Weight:
• Dimensions (LxWxH): 2.96″ x 42.60″ x 4.2″ (75x1082x106.7mm)
• Weight: 7.28 lbs./ 3.3kg.
Certifications / IP Rating:
• cETLus (Control # 4002034)
• CE
• FCC
• IP20
Environment:
Operational Temperature Range: -4°F ~ 113°F (-20°C ~ 45°C)
Storage Temperature: -22°F ~ 113°F (-30°C ~ 45°C)
What’s Included:
• (1) Indoor Locking Power Cord
• (1) UC-IR24
• (1) 20° Diffusion Filter
• Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
Optional Accessories:
• (1) 1×40° Linear Diffusion Lens (SKU: UBL912)
Note: Specifications are subject to change without notice.
